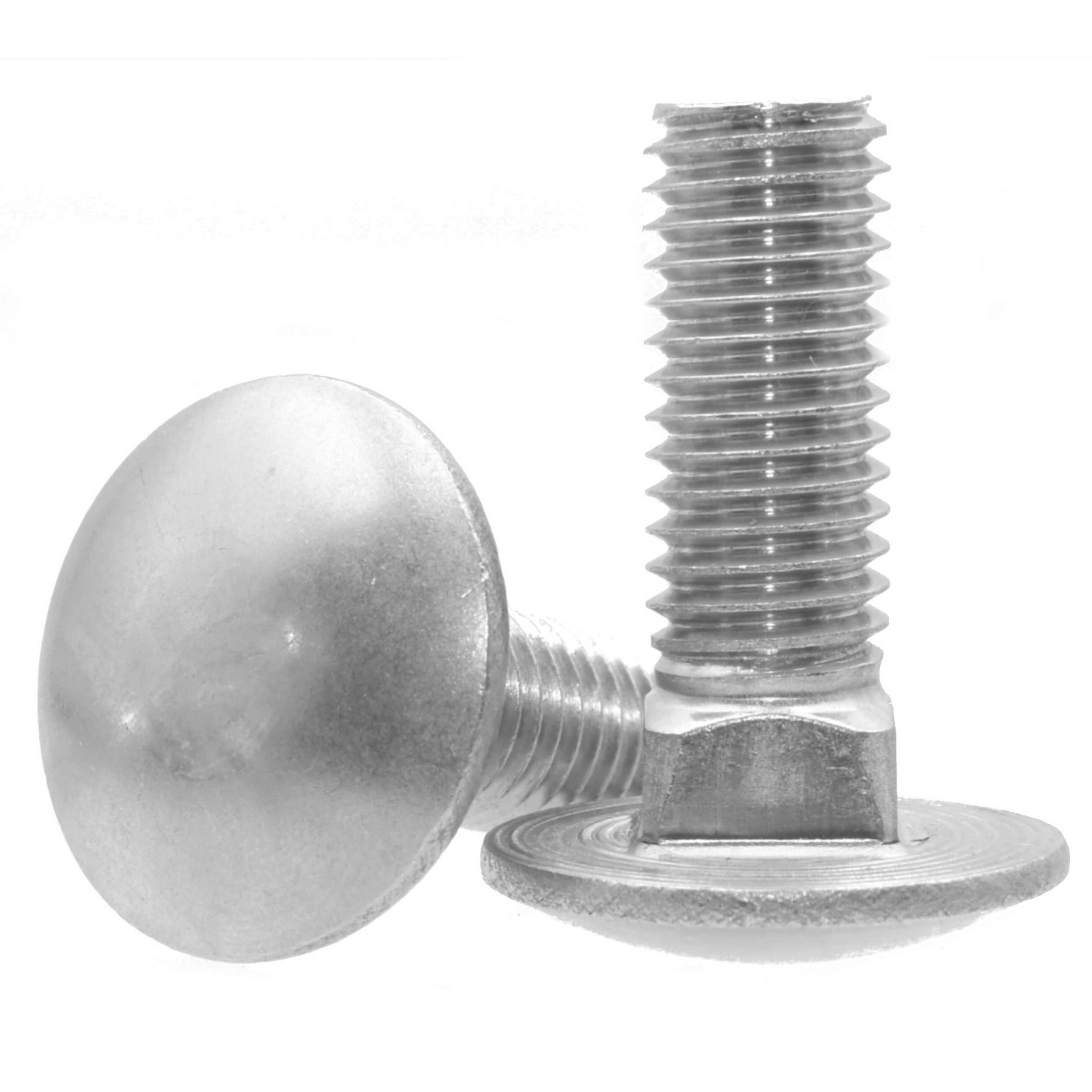

M8×80 Stainless Steel Carriage Bolt DIN 603 A2

Availability: duża ilość
Dispatched within: 24 godziny
Price: €0.18

Regular price:

0.18
quantity szt.

product unavailable

add to wish list
Pin It

Description

Stainless steel carriage bolts DIN 603 are widely used in woodworking, construction, timber joints, metal-to-wood connections and structural applications.

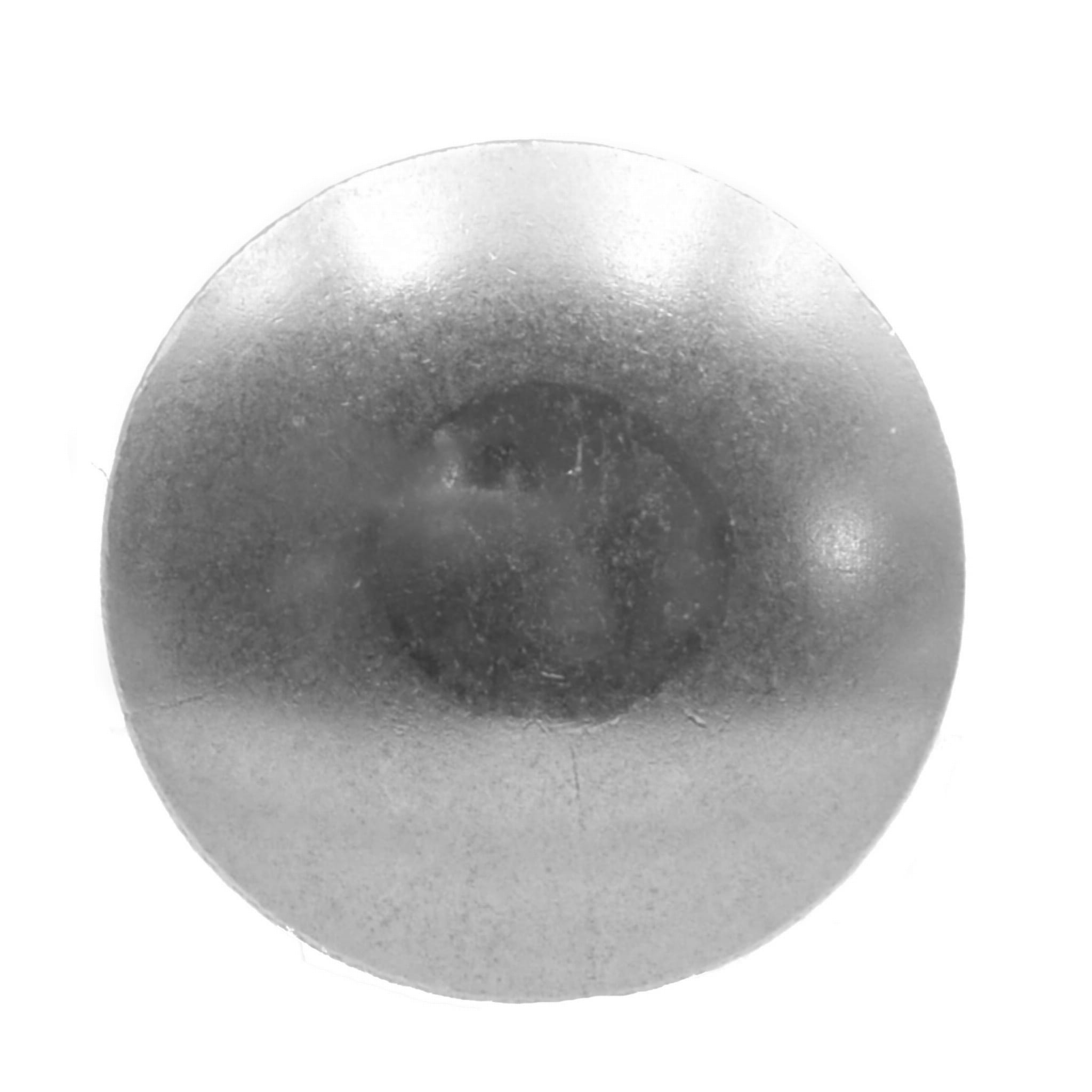

The round mushroom head provides a smooth finish, while the square neck under the head locks into wood or a matching square hole, preventing the bolt from turning when tightening the nut.

The M8×80 version is made from A2 (AISI 304) stainless steel, offering excellent corrosion resistance in humid, outdoor and industrial environments.

Technical Specifications (DIN 603 A2 M8×80)

  • Standard: DIN 603
  • Material: A2 (AISI 304) stainless steel
  • Thread size (d): M8
  • Total length (l): 80 mm
  • Head diameter (dk): 19.35 mm
  • Head height (k): 4.12 mm
  • Square neck height (f): 4.40 mm
  • Thread pitch: 1.25 mm
  • Feature: Round mushroom head with square neck preventing rotation
