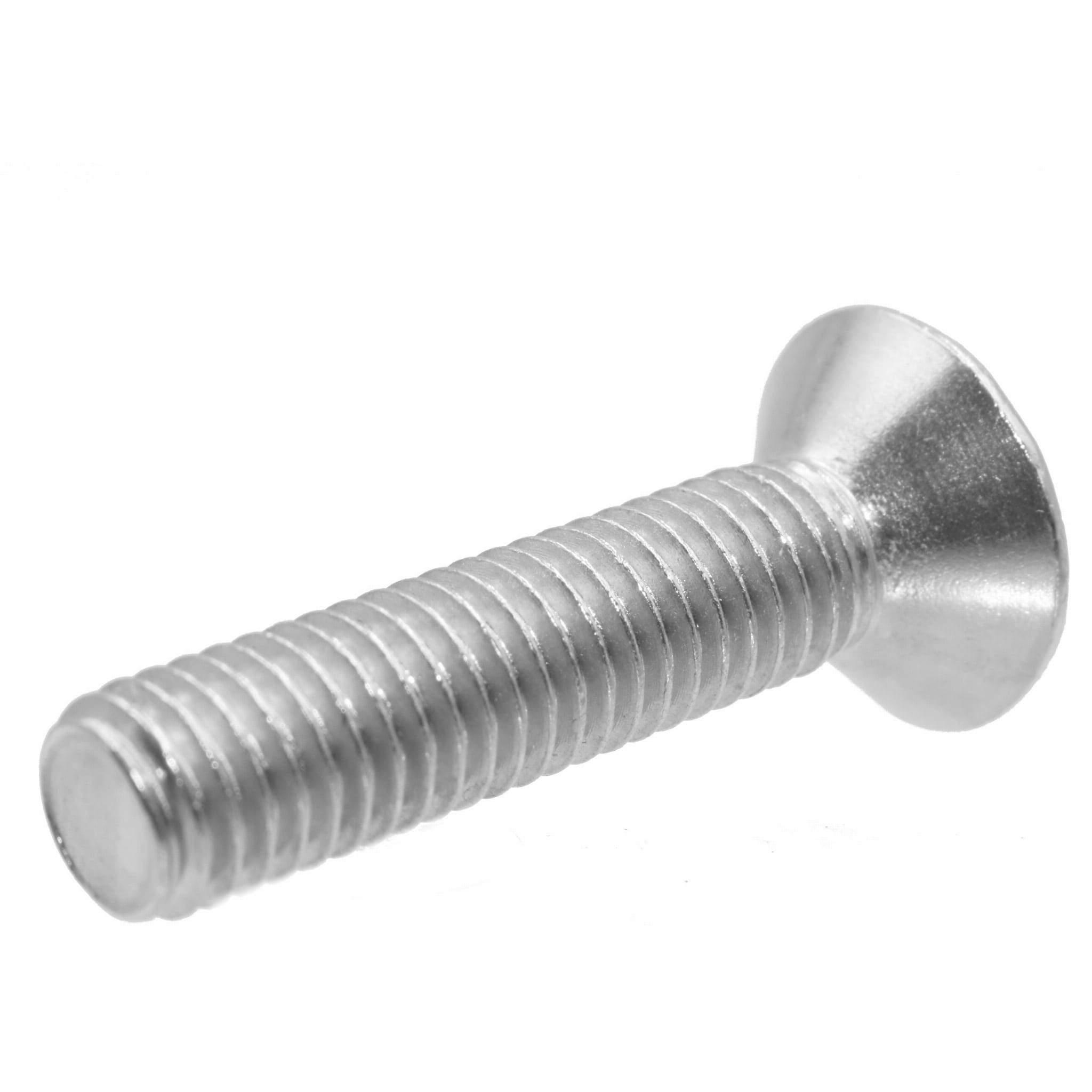

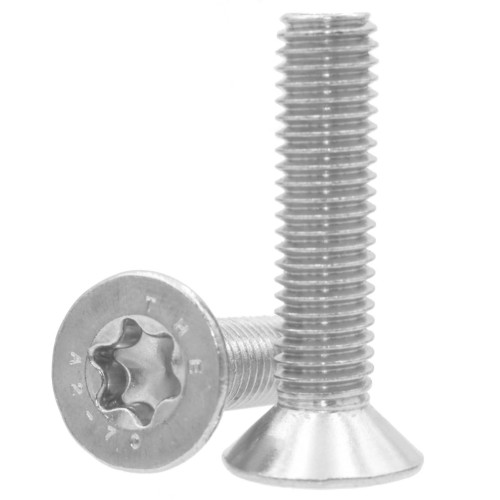

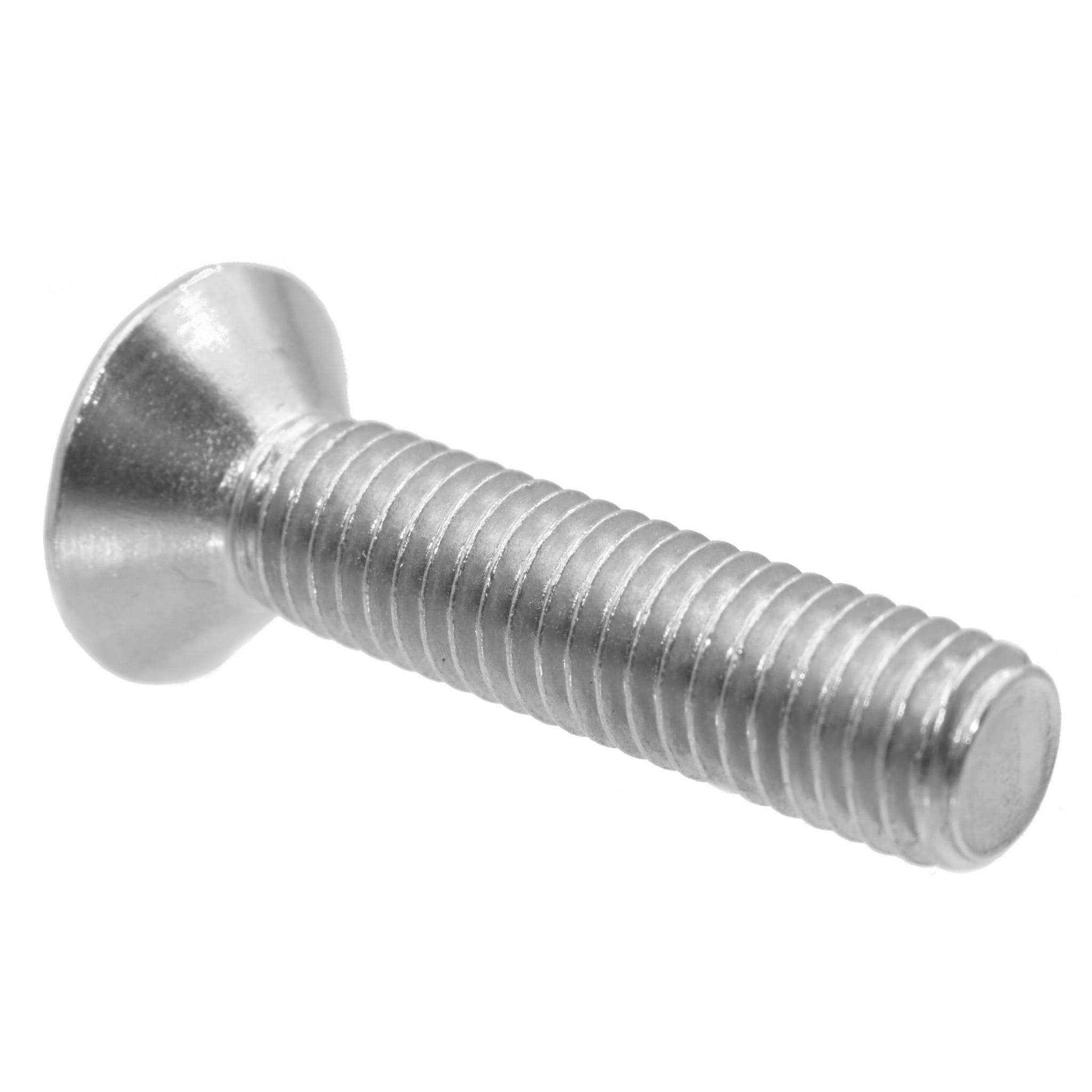

M6×30 Stainless Steel Countersunk Torx Screw DIN 7991 A2

Availability: duża ilość
Dispatched within: 24-48 godzin
Price: €0.07

Regular price:

0.07
quantity szt.

product unavailable

add to wish list
Pin It

Description

The DIN 7991 A2 M6×30 countersunk Torx screw is manufactured from high-quality A2 (AISI 304) stainless steel, ensuring excellent corrosion resistance and long service life.

The countersunk 90° flat head sits flush with the mounting surface, making this screw ideal for visible, precision or safety-focused applications.

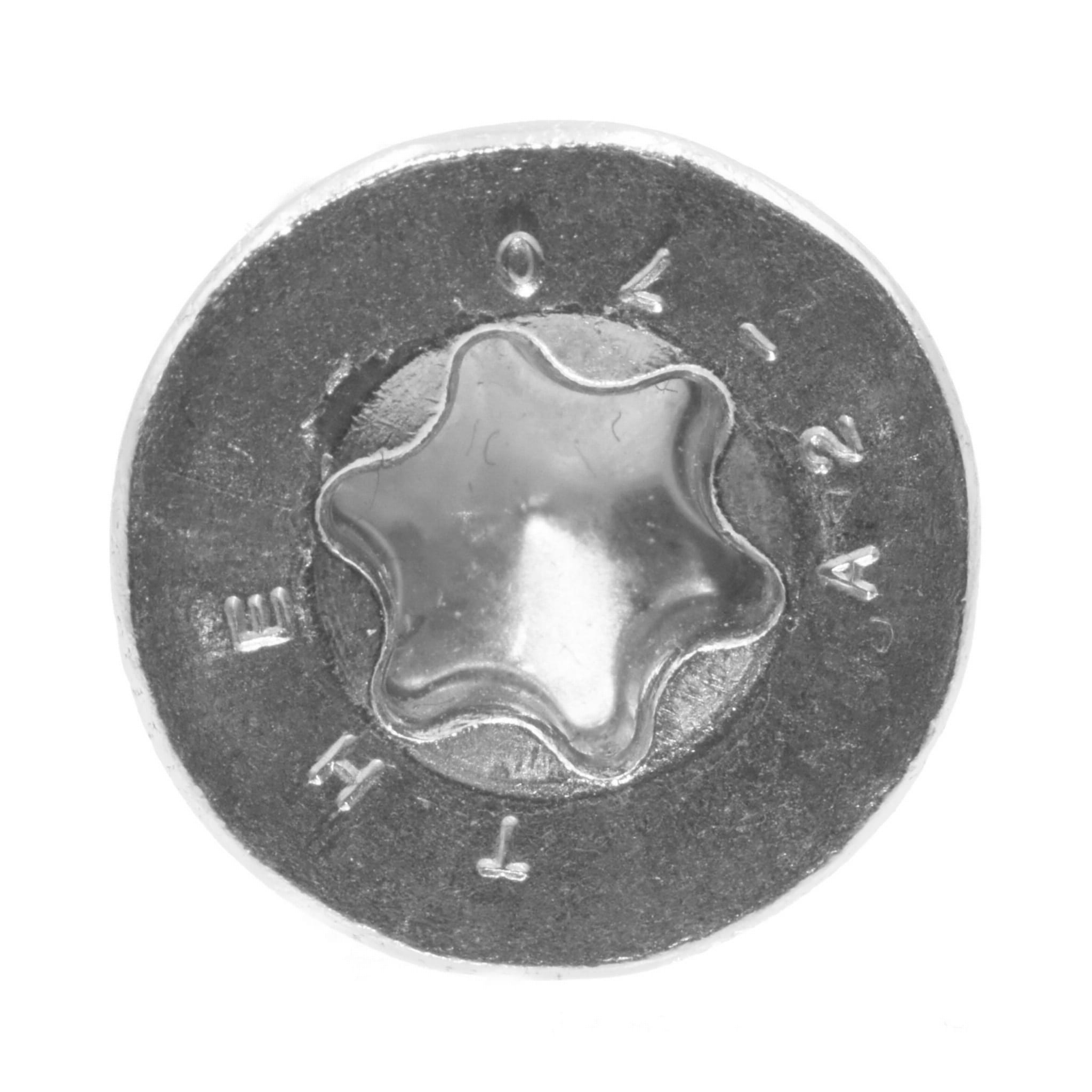

The Torx drive (TX10) provides superior torque transfer, reduced cam-out and secure tightening compared with a traditional hex socket.

This screw is suitable for electronics, furniture, machinery, aviation components, precision mechanisms and any stainless-steel Torx fastening application.





Technical Specifications (DIN 7991 A2 Torx M6×30)

  • Standard: DIN 7991 / ISO 10642
  • Material: A2 (AISI 304) stainless steel
  • Drive type: Torx TX10
  • Thread size (D): M6 (5,80 / 5,97)
  • Length (L): 30 mm
  • Head diameter (dk): 11,34 / 13,44 mm
  • Head height (k): 3,72 mm
  • Torx drive recess depth(tr) : 2,02 / 2,43 mm
  • Thread pitch: 1.0 mm
  • Head angle: 90°
  • Feature: Flush countersunk Torx head, stainless steel, fully threaded






Safety
