M4×10 Stainless Steel Set Screw DIN 913 A2 (flat-point)

Availability: duża ilość
Dispatched within: 24 godziny
Price: €0.01

Regular price:

0.01
quantity szt.

product unavailable

add to wish list
Pin It

Description

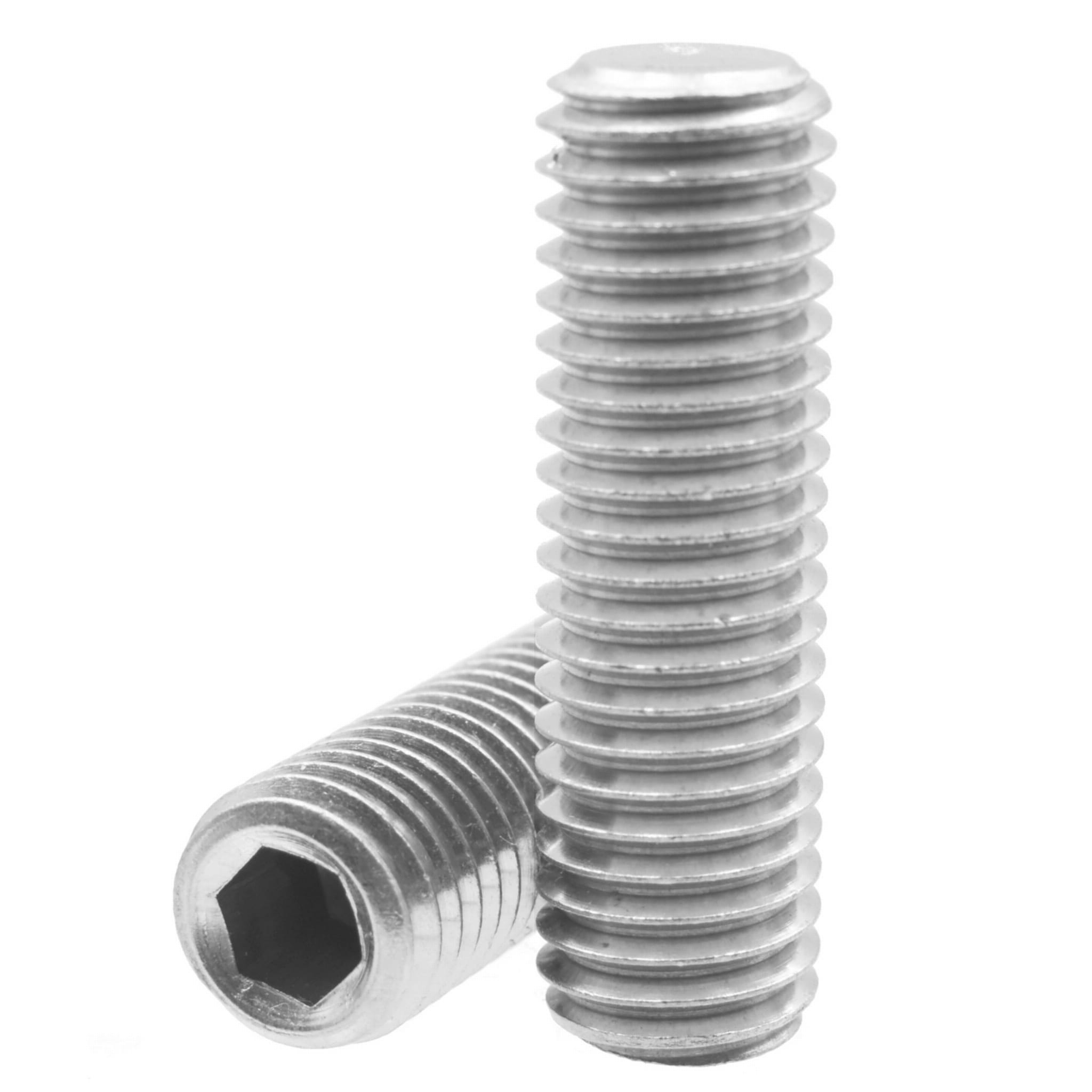

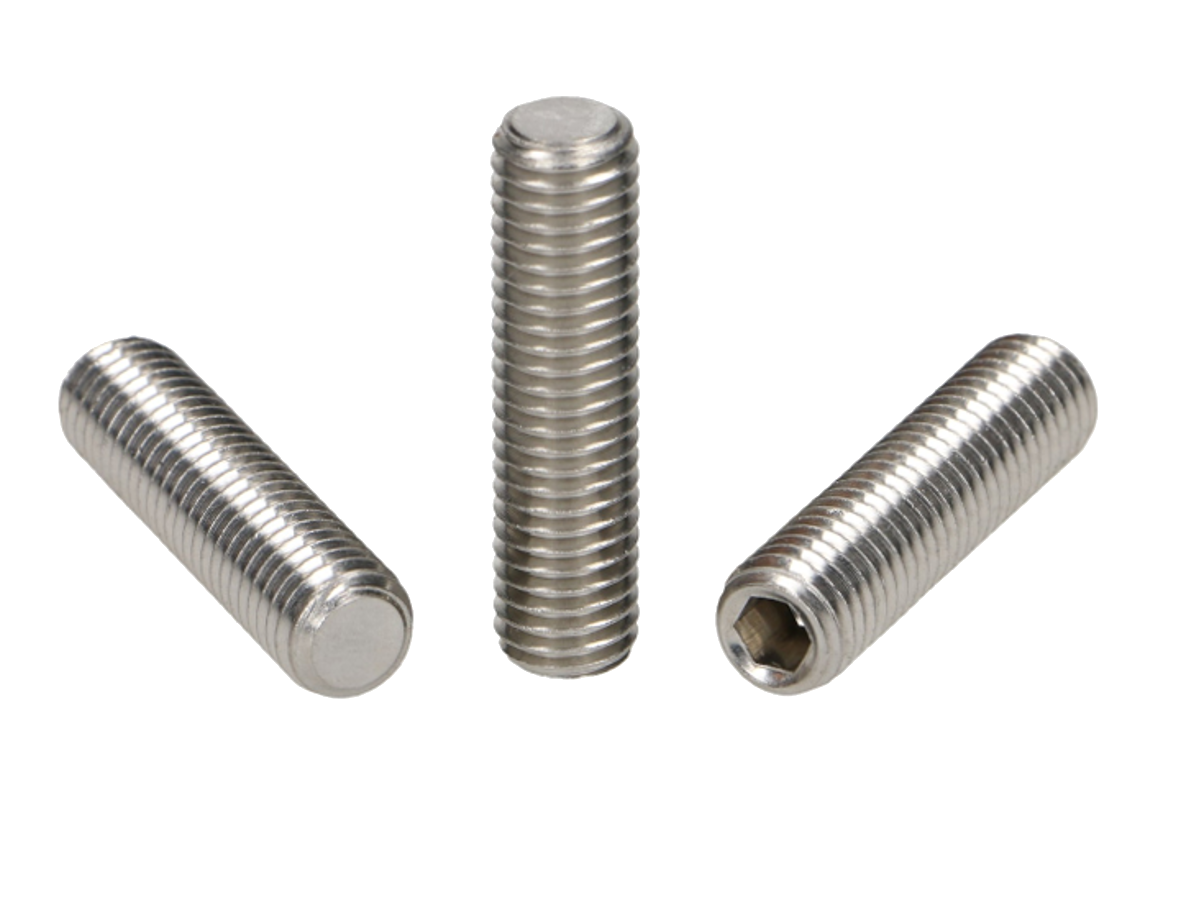

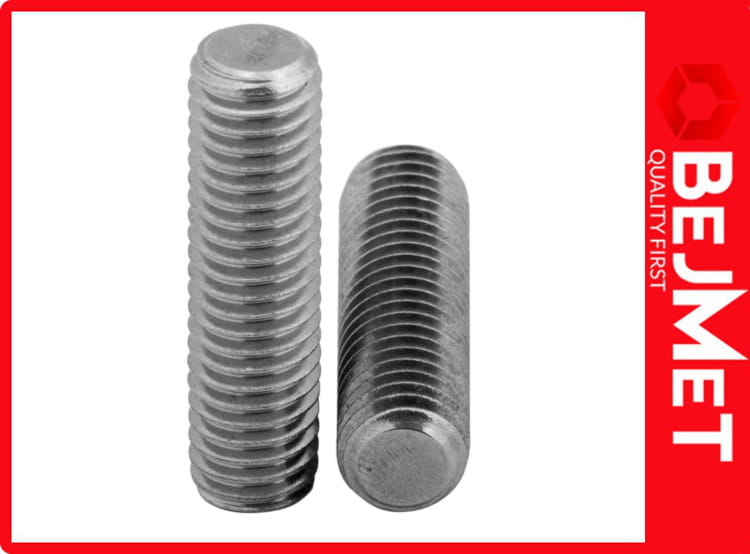

The DIN 913 A2 M4×10 stainless steel set screw is a headless (grub-style) fastening element with a flat point, designed for securing, positioning or locking shafts and components without protruding head. It uses a hex (socket) drive for installation, which allows discreet and compact fastening. Made of A2 (AISI 304) stainless steel, it offers excellent corrosion resistance — suitable for metal, stainless, or marine-environment applications. Below are the technical specifications for the M4×10 version:


Technical Specifications (DIN 913 A2 M4×10)

  • Standard: DIN 913 / ISO 4026 (hex-socket set screws, flat point)
  • Material: A2 (AISI 304) stainless steel
  • Thread size (d): M4
  • Thread pitch : 0.7 mm
  • dp: 2.25 mm
  • Length (l): 10 mm
  • Drive: Internal hex socket (allen key), s ≈ 2.0 mm typical for M4 screws
  • End type: Flat point — suitable for pressure / locking applications, not for tensile load
  • Feature: Headless set screw for hidden fastening or securing components, stainless steel for corrosion resistance
