M1.6×8 Stainless Steel Countersunk Cross-Recess Screw DIN 965 A2

Availability: duża ilość
Dispatched within: 24-48 godzin
Price: €0.02

Regular price:

0.02
quantity szt.

product unavailable

add to wish list
Pin It

Description

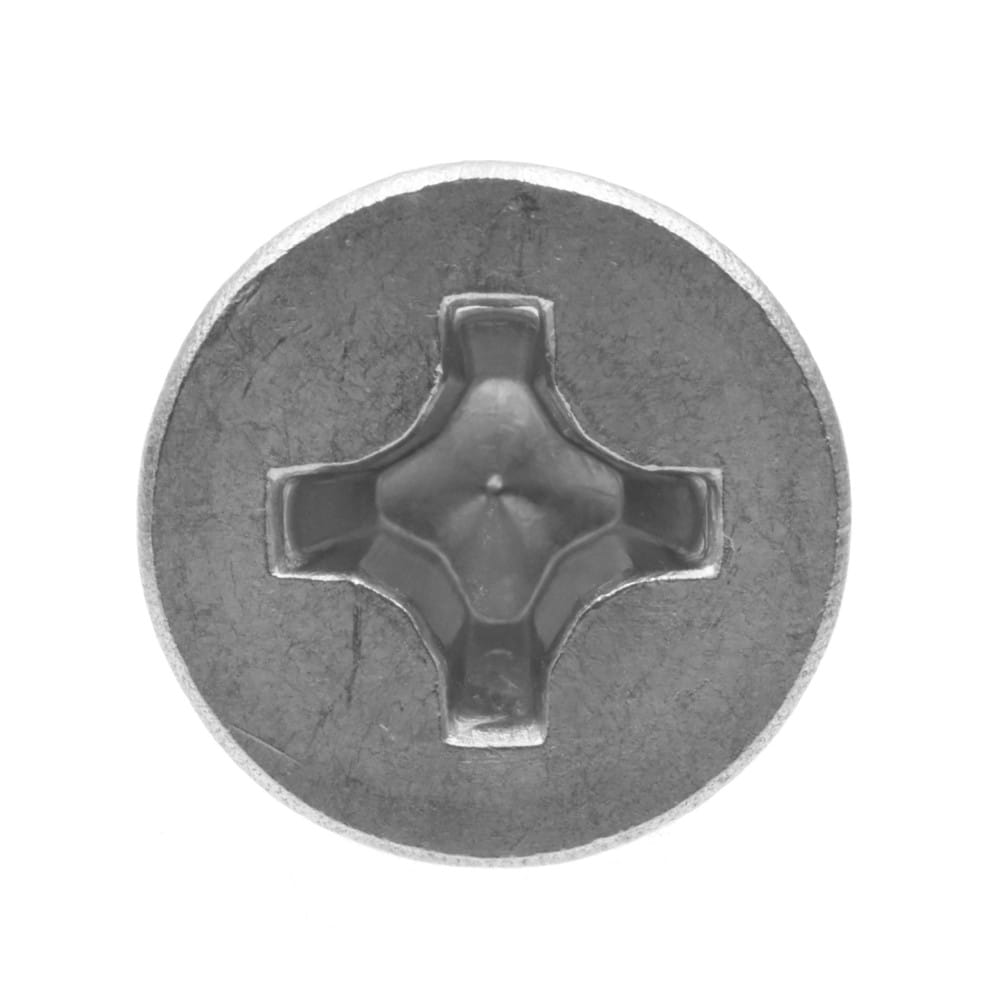

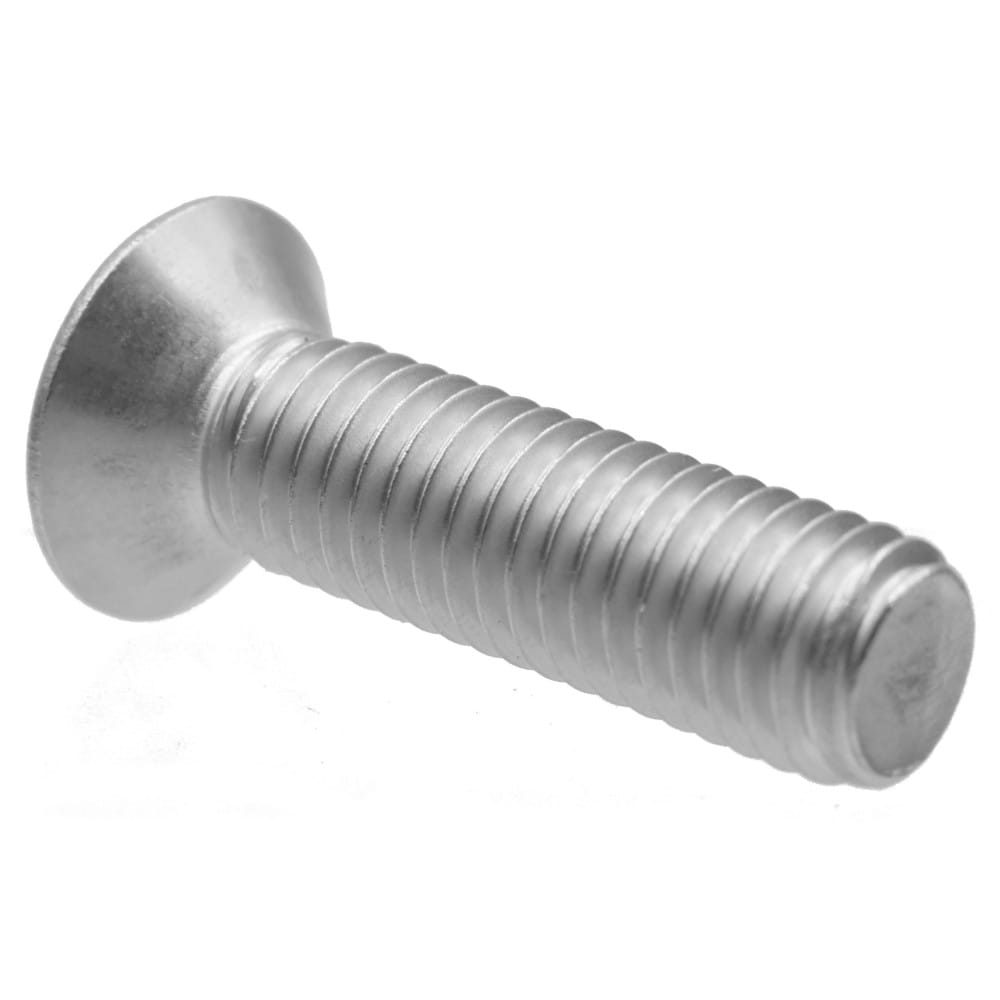

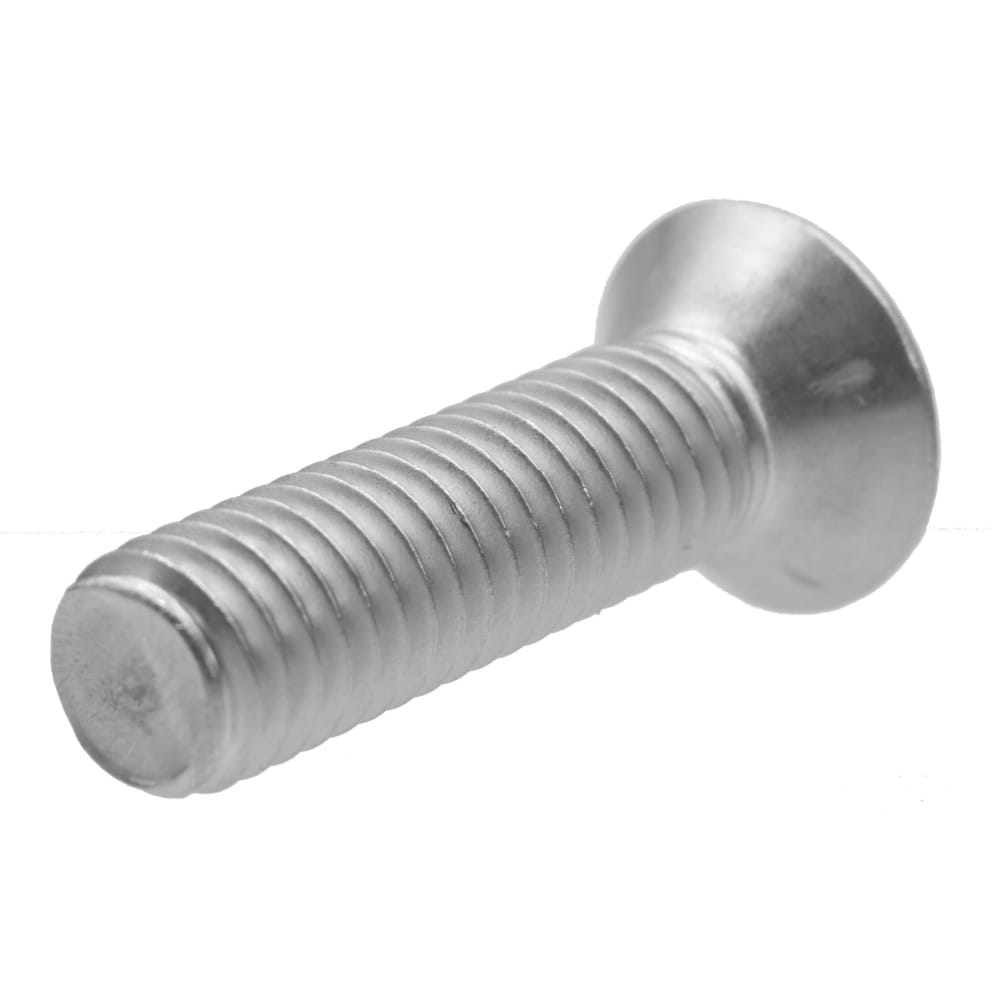

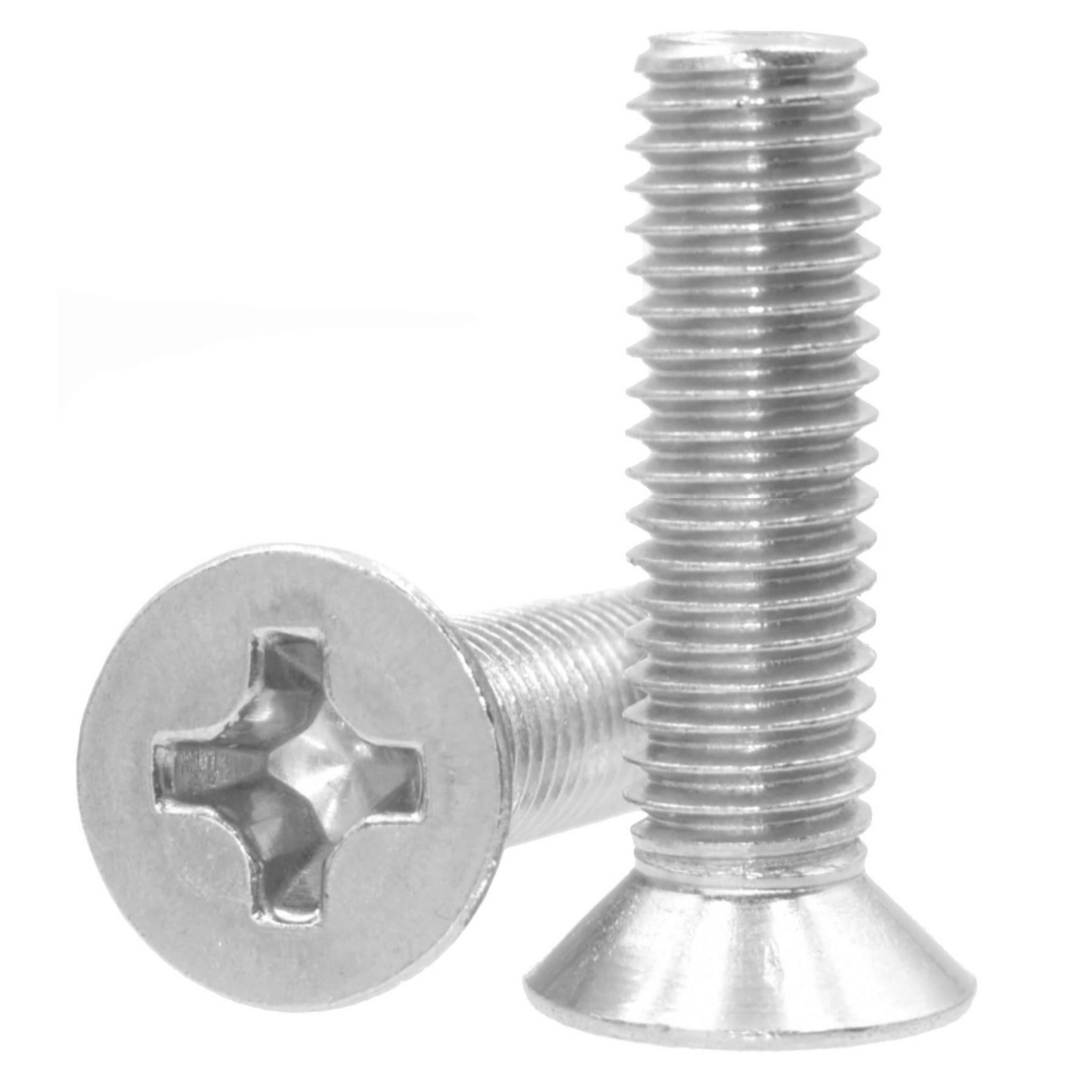

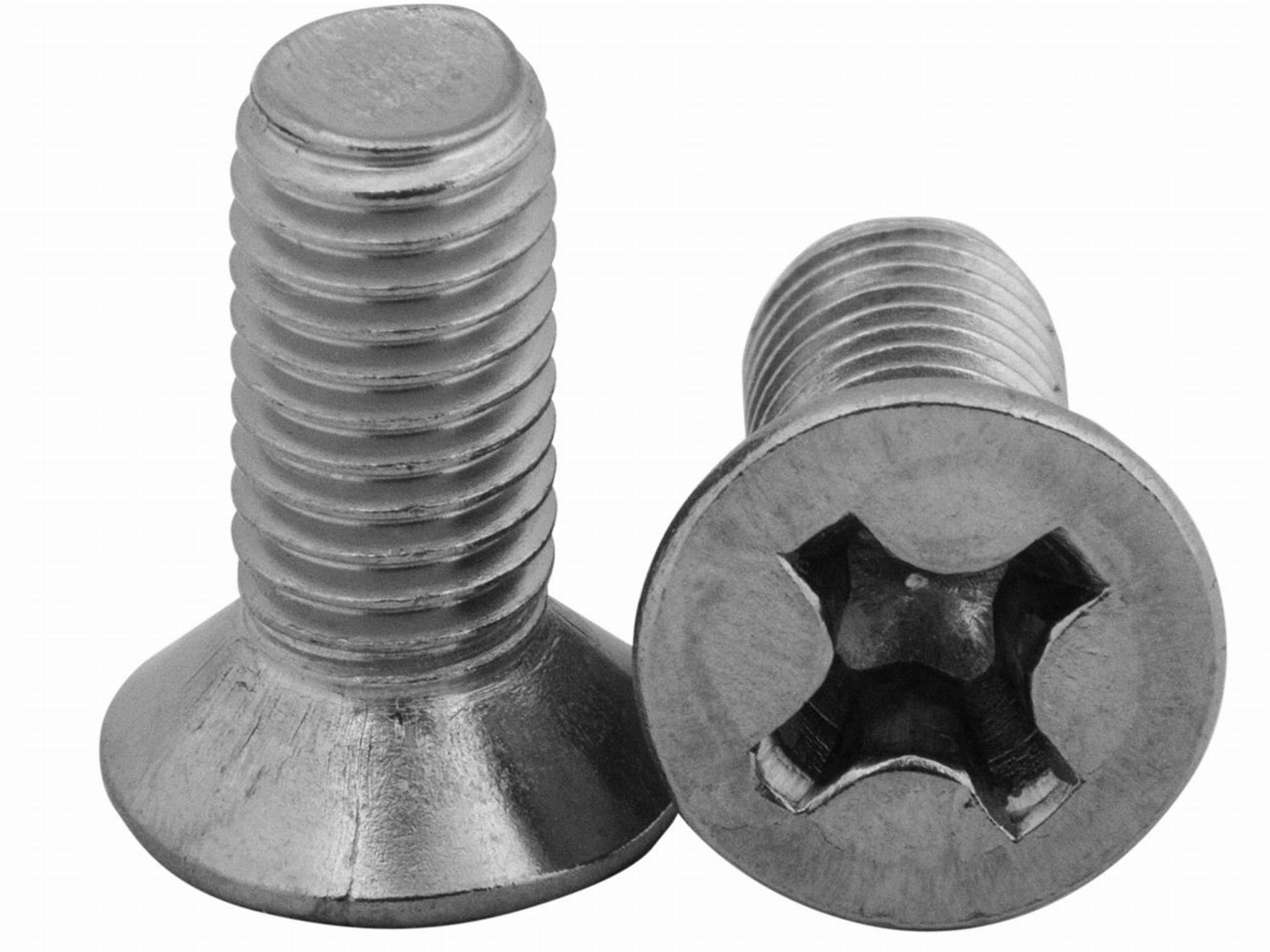

The DIN 965 A2 M1.6×8 stainless steel countersunk screw is a precision fastener designed for miniature assemblies, electronics, instruments and fine mechanics. The 90° flat head allows the screw to sit flush with the surface, ensuring a clean and low-profile finish.

Made from A2 (AISI 304) stainless steel, it offers excellent corrosion resistance, durability and reliable performance in demanding environments. The cross-recess (Phillips) drive ensures easy tightening even at very small dimensions such as M1.6.

Technical Specifications (DIN 965 A2 M1.6×8)

  • Standard: DIN 965
  • Material: A2 (AISI 304) stainless steel
  • Thread size (d): M1.6
  • Total length (l): 8 mm
  • Head diameter (dk): 3.36 mm
  • Head height (k): 1.10 mm
  • Thread pitch: 0.35 mm
  • Drive type: Cross-recess (Phillips)
  • Head angle: 90° countersunk



Safety
