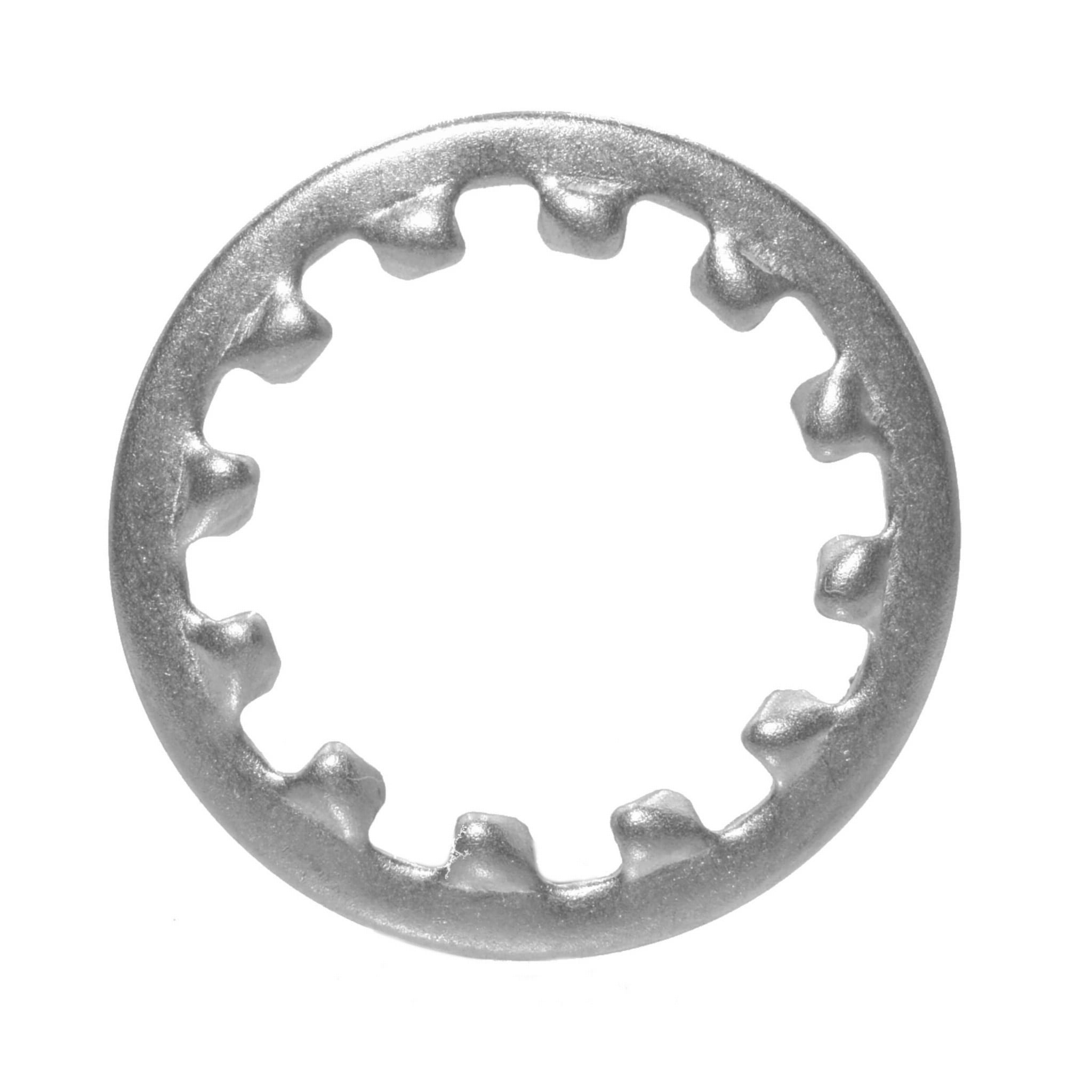

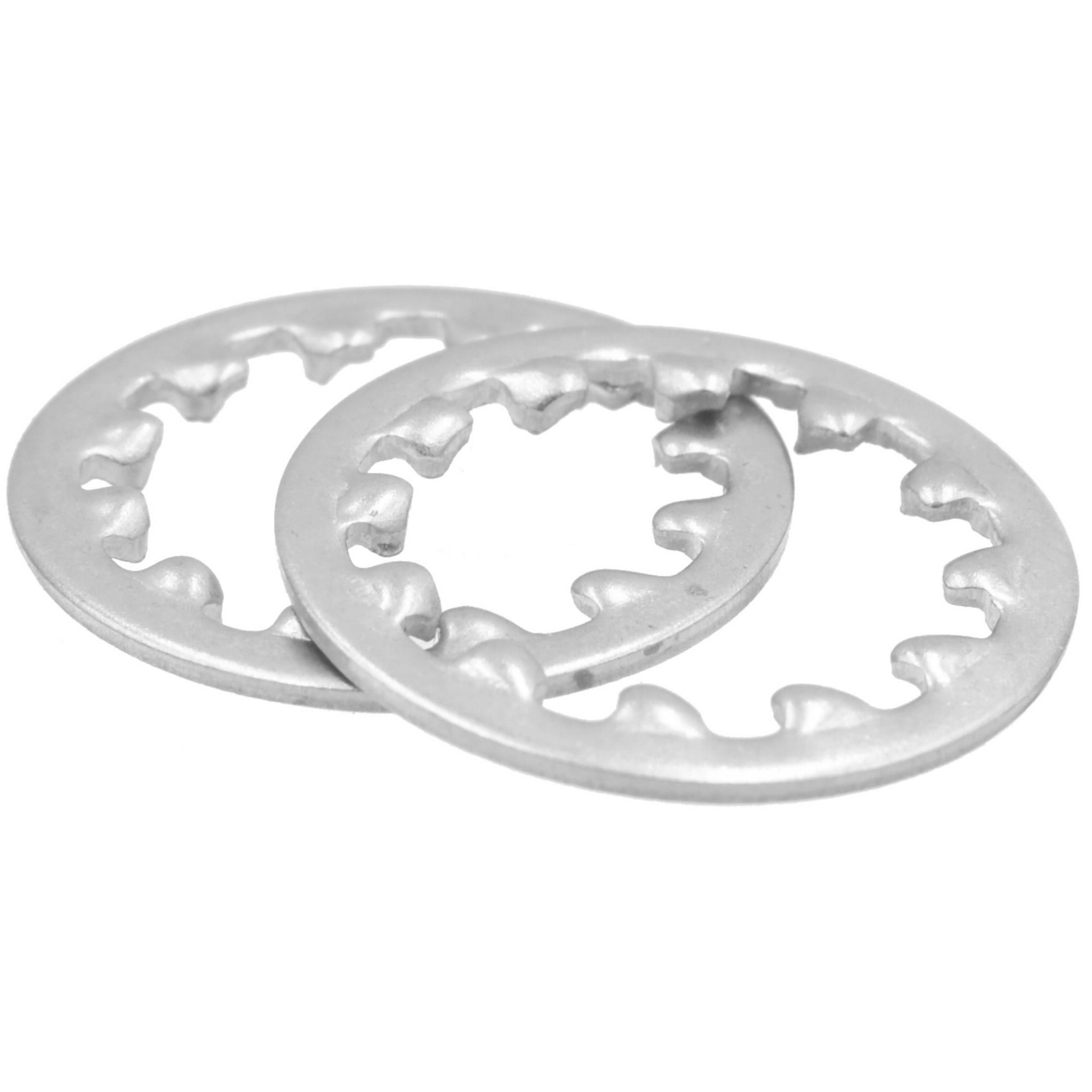

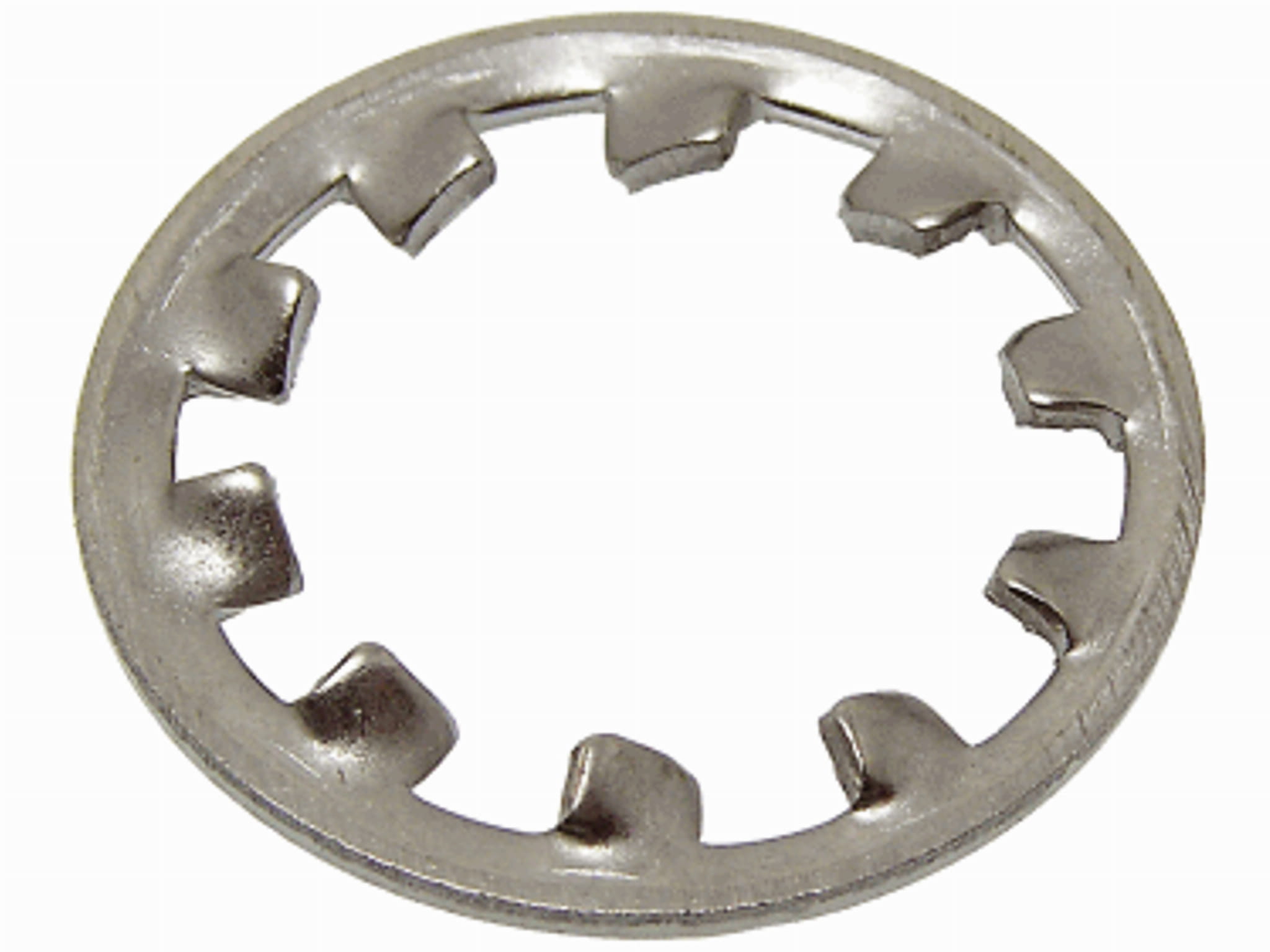

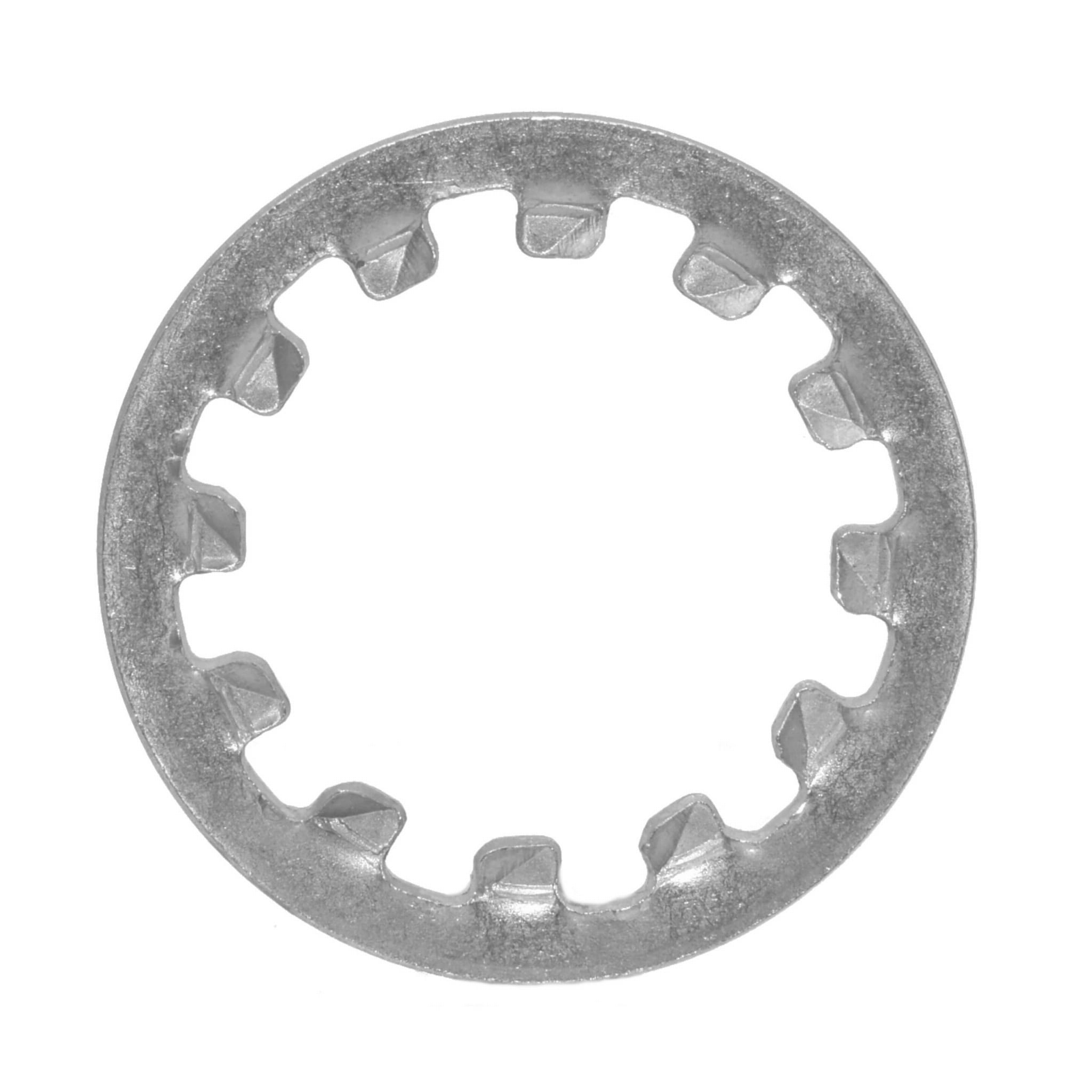

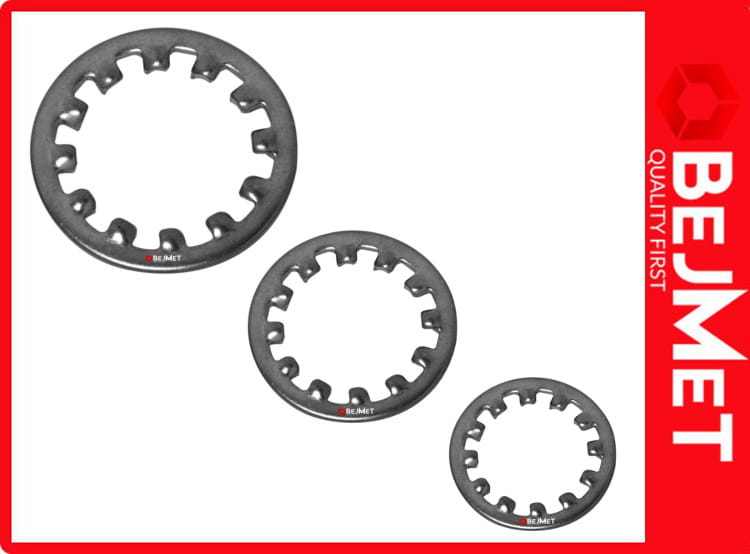

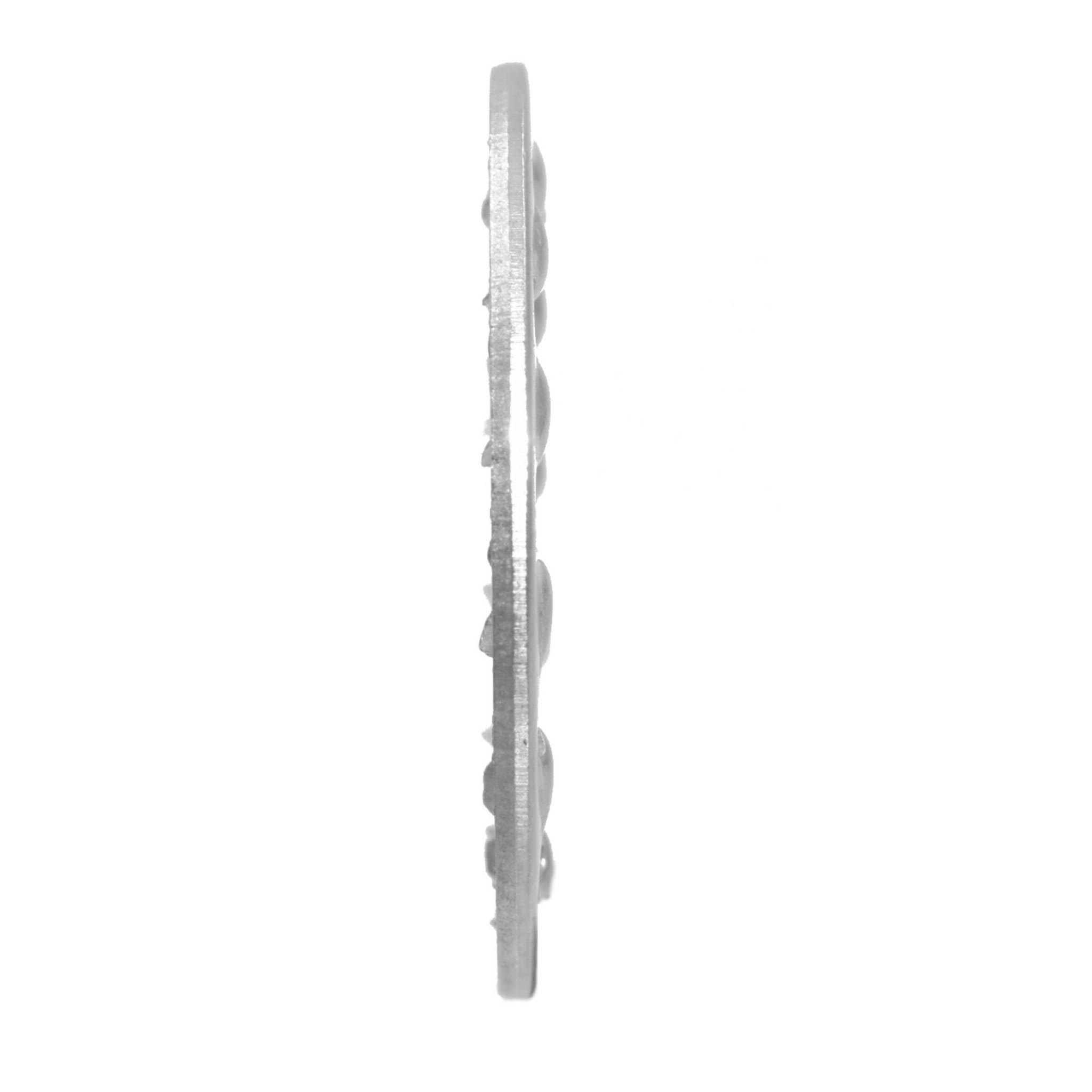

M5 Internal Toothed Lock Washer DIN 6797 I A2
Availability:
duża ilość
Dispatched within:
24-48 godzin
Description
M5 internal toothed lock washer DIN 6797 I made of A2 stainless steel. Designed to prevent loosening of threaded connections caused by vibration. Internal teeth increase friction without damaging the outer surface.
| Technical Drawing | Dimension Description |
|---|---|
 |
Thread size: M2=5 Standard: DIN 6797 I Inner diameter (d1): 5.3 mm Outer diameter (d2): 10 mm Thickness (s1): 0.6 mm Material: Stainless steel A2 (AISI 304) |
