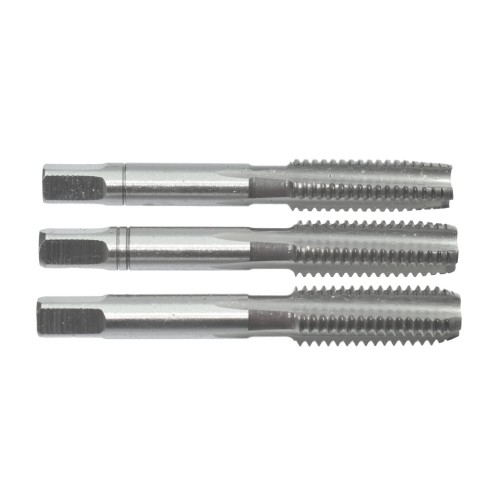

HAND Tap M14 x 2.0 General use,(Set 3pcs)
 "Pin It")
Description
HAND Tap M14 x 2.0 General use,(Set 3pcs)
Thread standard: Metric, ISO DIN 13
Type: Hand tap, Form C, for through and blind holes, with straight flutes
Application: General use
Material of product: HSSG
Surface treatment: no
For materials: Unalloyed and low alloyed steel, non abrasive material
Tensile strength up to: 900 N/mm2
Standard: DIN 352
Tolerance: ISO2/6H
Set of 3 taps (taper, intermediate, finish).
Three-piece hand taps- sets are used for regular threads with coarse pitch, as the thread profile area is larger than for fine threads and the force effects on the taps are greater. The advantage of three-piece hand taps is that the respective parts of a set share the cutting power: The taper tap (No. 1) (marked with one ring) removes 65 per cent of the thread profile and the intermediate tap (No. 2) (marked with two rings) removes 85 per cent. Pre-cutting and reworking with the intermediate tap (No. 2) bring the thread into shape. In the last step, the finishing tap (No. 3) is used, which has no ring marking. Only this cuts
the full and usable thread at the end. The division of labour between the three screw tap makes it easier to cut a straight and clean thread by hand.
