3/8" 2-Pcs Stainless Steel Economy Ball Valve
Description

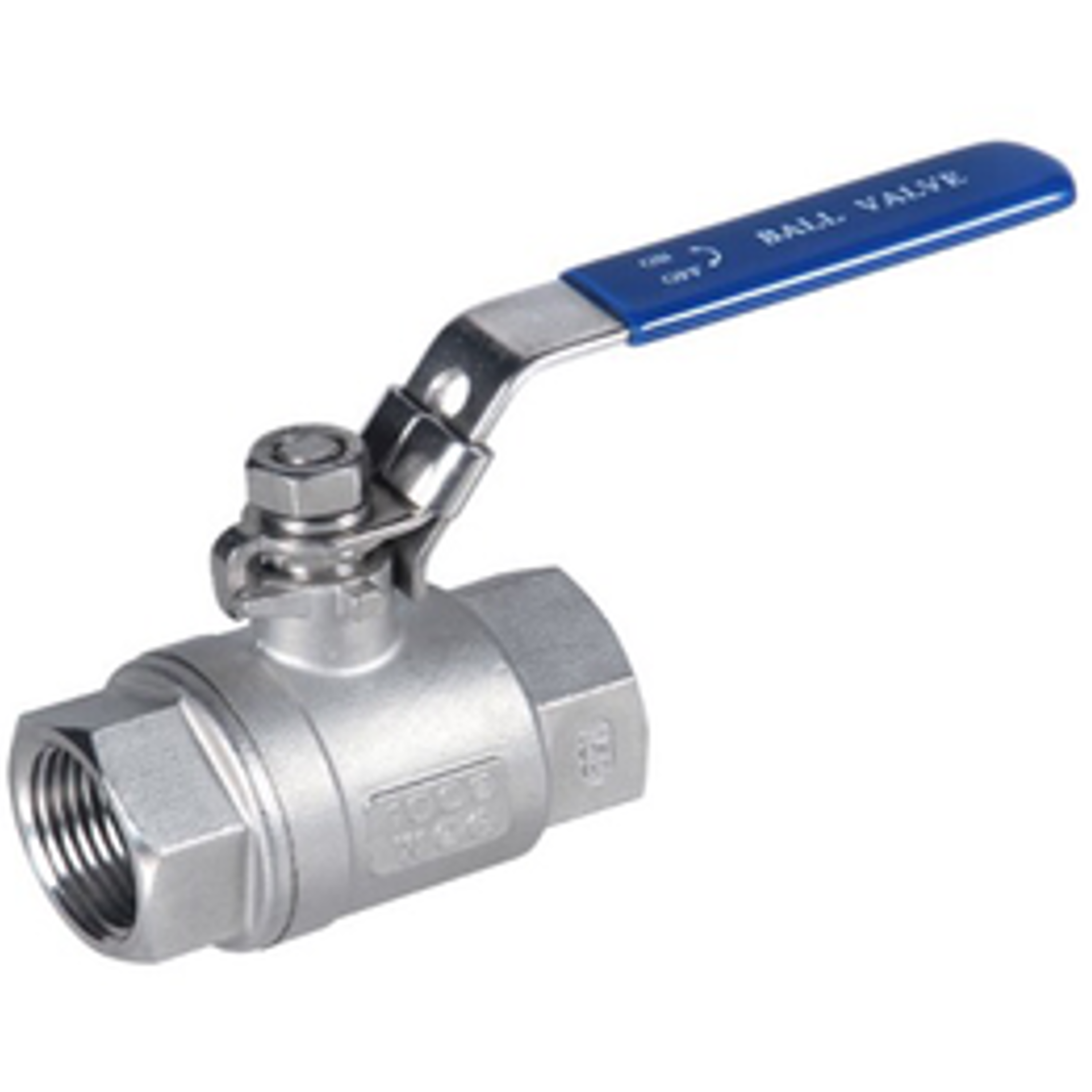

2 Piece Full Bore Stainless Steel Ball Valve Screwed BSP - 3/8”
Our economy 2 piece stainless steel ball valve is a full bore ball valve, providing safe operation for both general, industrial, chemical and contaminated applications. It offers both economical and reliable operation expected from a non-maintainable ball valve.
CF8M Stainless Steel Body and PTFE seat. Used to 'shut-off' medium flows on a wide range of liquid and gaseous, it is supplied with a lockable lever grip insulated handle and is screwed BSP.Working Temperature: -20°C to +180°C Maximum Working Pressure: 63 bar
![]() |
|

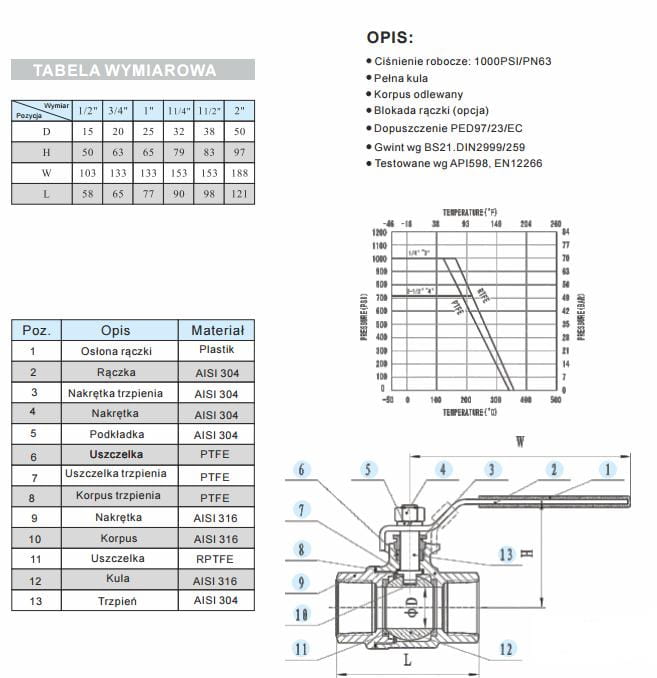

MATERIAL
|
ITEM |
DESIGNATION |
MATERIAL |
|
1 |
HANDLE COVER |
PLASTIC |
|
2 |
BODY |
CF8/CF8M |
|
3 |
SEAT |
PTFE |
|
4 |
BALL |
CF8/CF8M |
|
5 |
GLAND NUT |
CF8/CF8M |
|
6 |
SEAT |
PTFE |
|
7 |
WASHER |
PTFE |
|
8 |
SEAT |
PTFE |
|
9 |
STEM NUT |
SUS304 |
|
10 |
SPRING WASHER |
SUS304 |
|
11 |
STEM NUT |
SUS304 |
|
12 |
STEM |
SUS316 |
|
13 |
LOCK DEVICE |
SUS304 |
|
14 |
HANDLE |
SUS304 |
