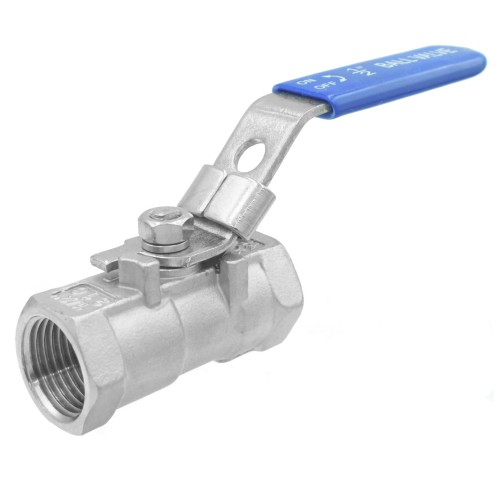

3/8" 1-Pcs Stainless Steel Economy Ball Valve

Availability: duża ilość

Dispatched within: 24 godziny

Price: €3.71

Regular price:

3.71

quantity szt.

product unavailable

add to wish list

Rating:

Vendor: bejmet

Product code/SKU: KAT01182

Description

Stainless Steel Economy Ball Valve is a non-maintainable one piece, reduced bore ball valve; providing safe operation for both general and industrial chemical applications.

An economical, compact and reliable, female/female ball valve with CF8M Stainless Steel body and PTFE seat.

Used to 'shut-off' medium flows on a wide range of liquid and gaseous duties including drain and blow down, gauge isolation and test points.

Features a blow-out proof stem and insulated grip, lockable lever handle.

Screwed BSP
CF8M Stainless Steel body
PTFE Seat
Sizes: 3/8"
Temperature range: -20°C to +180°C
Operating pressure: 0-63bar /1000PSI
Movement: 90° turn
Investment cast with low torque

　　MATERIAL

ITEM	DESIGNATION	MATERIAL
1	JOINT GASKET	PTFE
2	BALL	CF8/CF8M
3	BODY	CF8/CF8M
4	SEAT	PTFE
5	HANDLE COVER	PLASTIC
6	HANDLE	SUS304
7	LOCK DEVICE	SUS304
8	STEM	SUS304/316
9	STEM NUT	SUS304
10	SPRING WASHER	SUS304
11	GLAND NUT	SUS304
12	STEM PACKING	PTFE
13	THRUST WASHER	PTFE
14	CAP	CF8/CF8M

Safety

Certificates and safety warnings

Produkt przeznaczony do zastosowań przemysłowych. Identyfikacja produktu: Zawory kulowe gwintowane ze stali nierdzewnej AISI 316 Typy: 1PC, 2PC, 3PC, MINI, czerpalne Zakres: DN6–DN80
Montaż powinien być wykonany przez osobę posiadającą odpowiednie kwalifikacje techniczne. Nie stosować produktu poza zakresem dopuszczalnego ciśnienia i temperatury pracy określonych w dokumentacji technicznej. Nie stosować produktu z mediami chemicznymi, które mogą powodować korozję materiału.
Nie stosować uszkodzonych elementów armatury. Produkt nie jest przeznaczony do zastosowań konstrukcyjnych ani jako element bezpieczeństwa instalacji. Szczegółowe informacje dotyczące właściwości użytkowych znajdują się w oraz instrukcji użytkowania.
